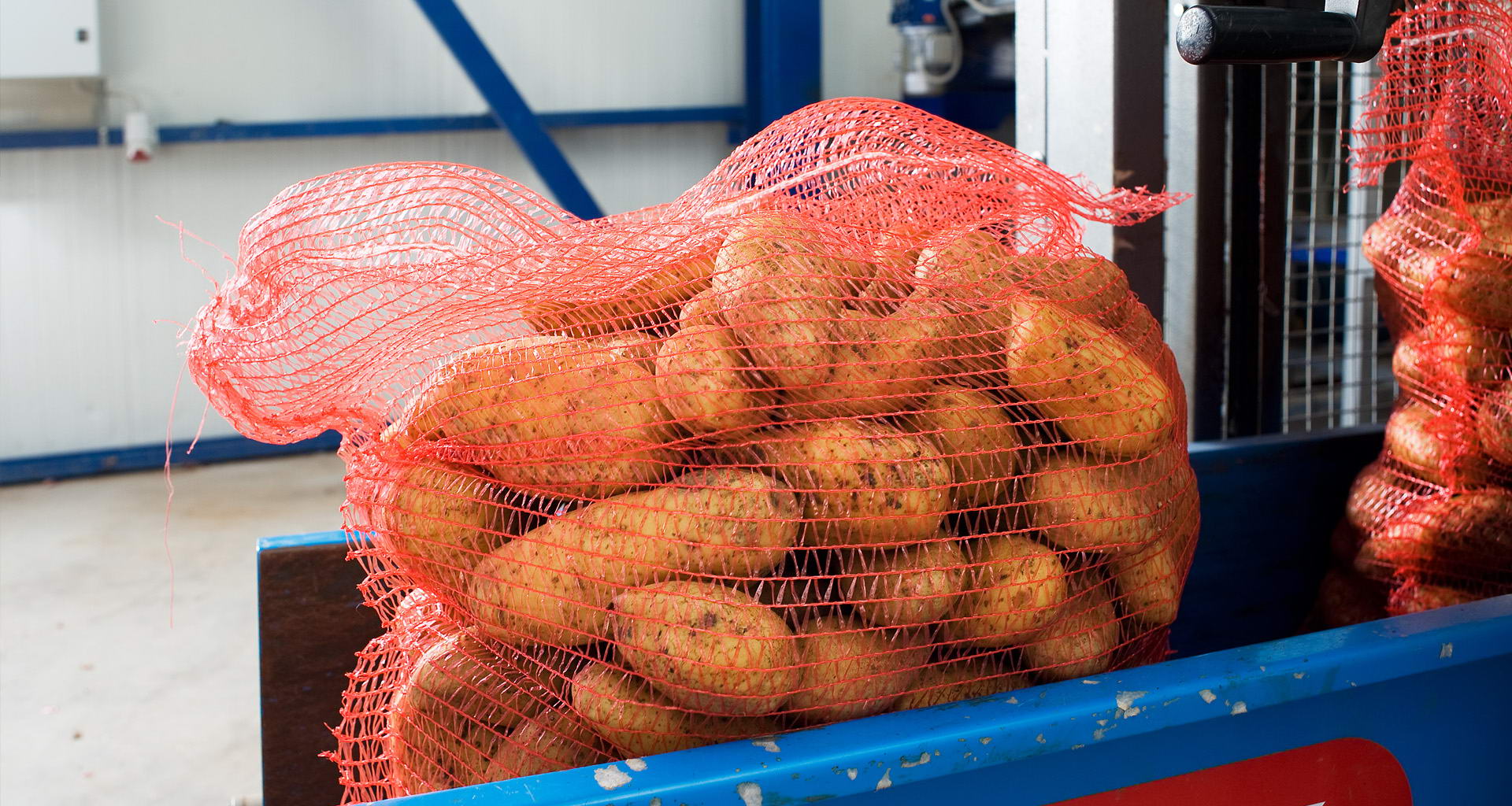

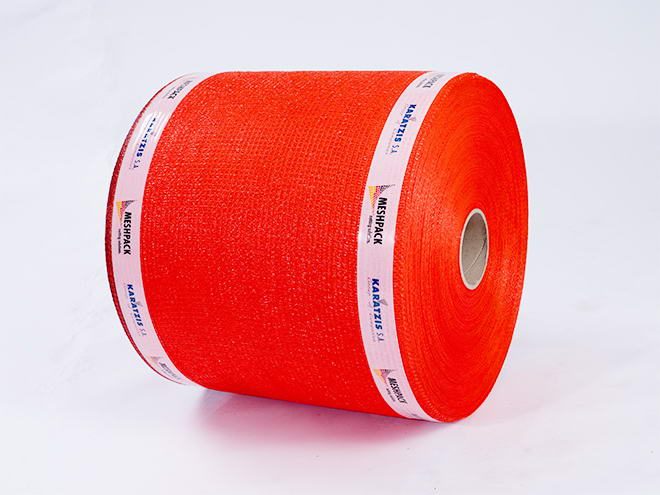

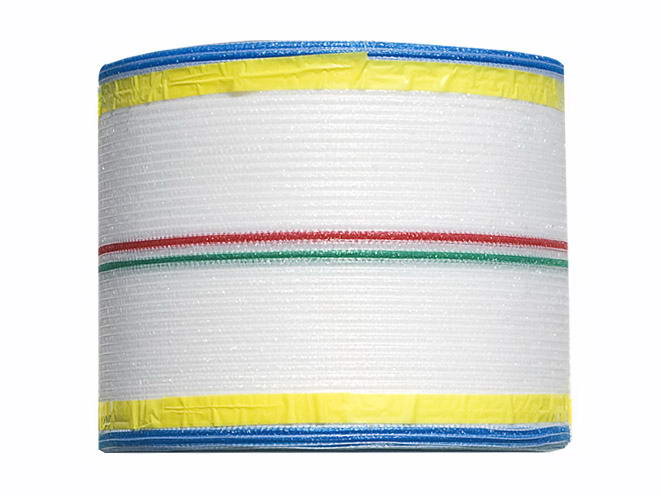

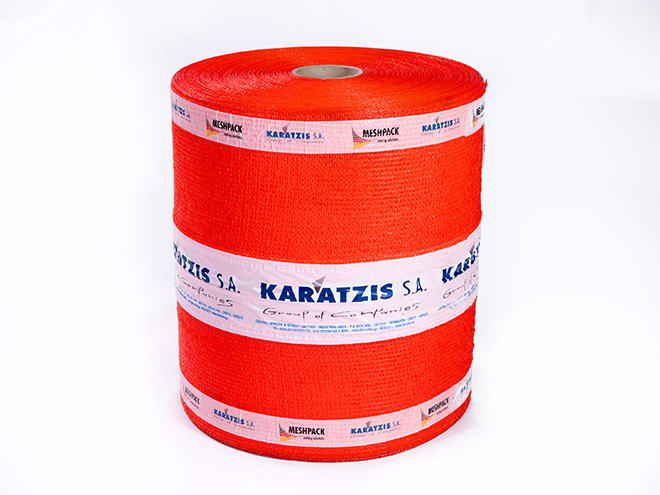

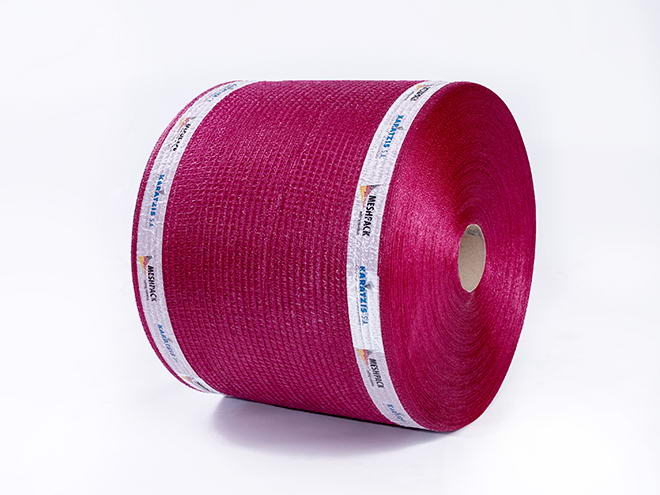

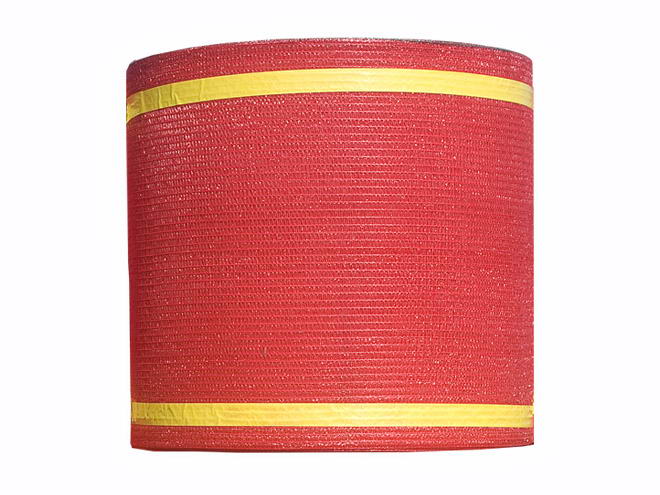

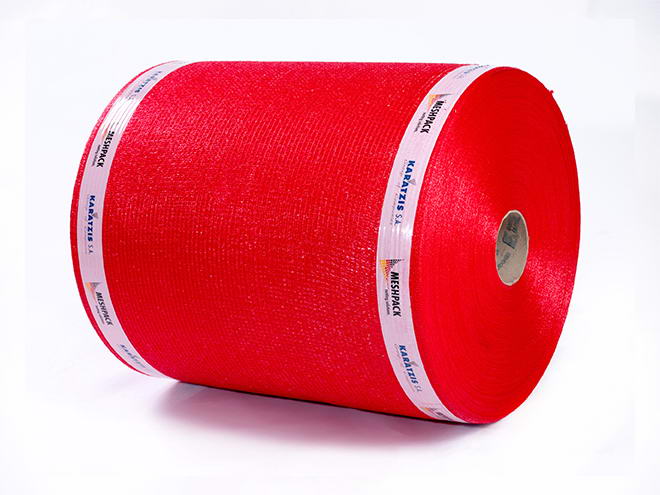

BAGS ON ROLLS
Raschel bags on rolls are mostly addressed to large packing houses with automatic packaging machines.. Due to their air-permeable netting are ideally suited for packaging fruits and vegetables.

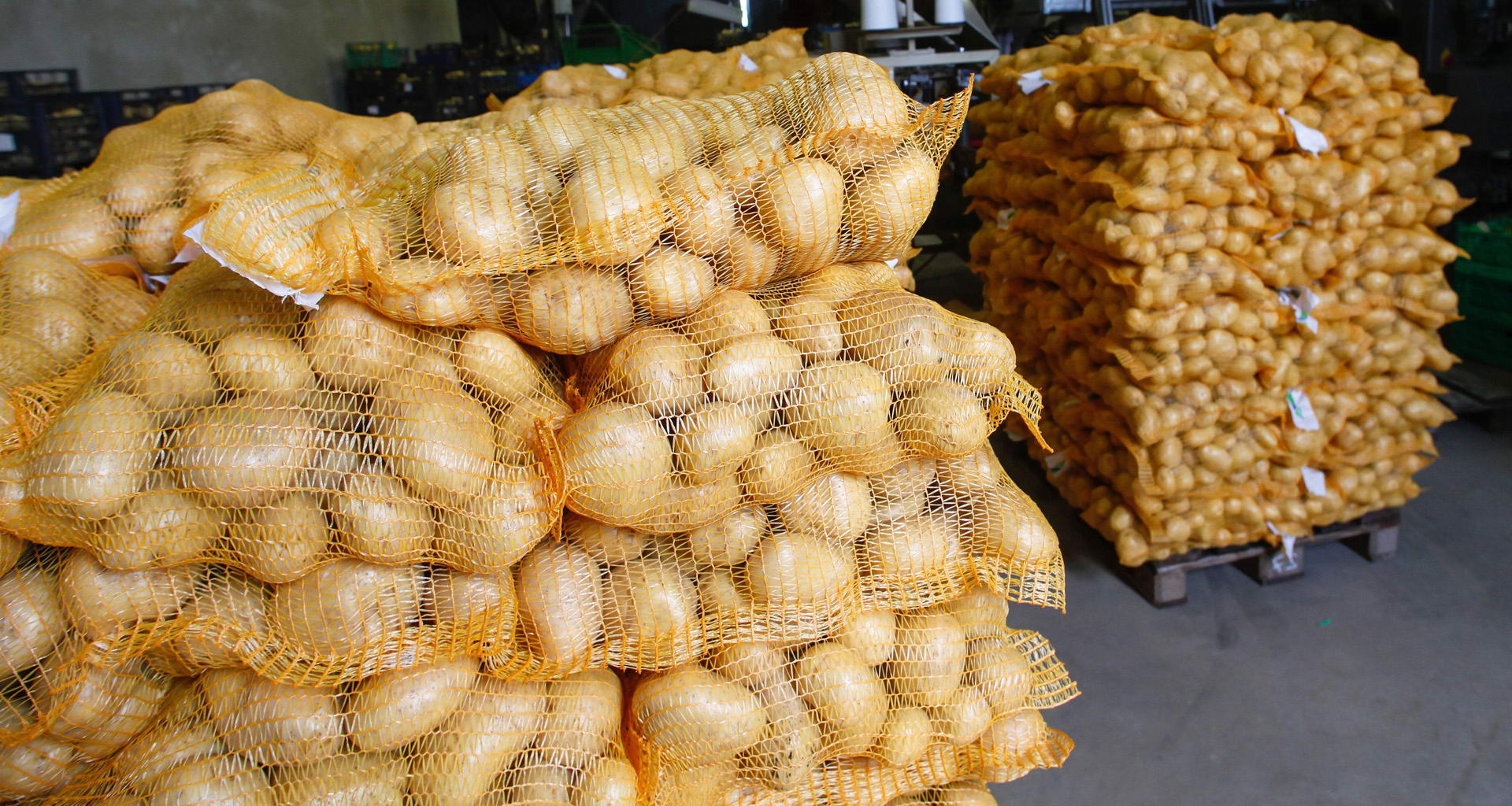

They are most commonly used to package potatoes, onions and carrots, but beetroots, corn and citrus fruits can also be successfully packaged therein.
ADVANTAGES
Our Raschel bags on rolls are an economic, efficient and effective packaging solution, designed to maintain the freshness of the produce. The net structure allows the consumer to visually inspect and perform a quality check on the packaged goods at the time of purchase. The loose-knit structure provide excellent ventilation which prevents the built-up of moisture inside the package. They are compatible with large labels application a fact that makes advertising and/or communication easy and appealing. Available in many different colors and combinations to enhance the content or to identify products and producers.
FEATURES
- High tensile-strength and excellent tear-resistance
- Latest process technology ensuring low- or no-stretch of the fabrics
- Made with less plastic than the market standards
- Environmental friendly , 100% recyclable
- No toxic fumes when bags are hot-sealed or cut
- Guaranteed zero-faults rolls
- User-friendly soft packaging
- All colors used are certified heavy-metal-free and approved to come in contact with food
- Carry-handles and labelling available on request
- Large variety of colors and combinations
- Wide range of application also in non-food items (firewood, toys, etc.)
BAGS ON ROLLS PRODUCT RANGE
TECHNOLOGIES
The Eco technology
Karatzis S.A rediscovered raschel bags by taking an environmentally friendly concept. We started from the very basics of the knitting process, re-configured our method and managed to achieve a lighter netting, the Eco Bags.
Advantages for the packer.
- Better price per unit
- More quantity per roll and less diameter, approximately 35% bags in every roll*
- Fewer load sessions and decreased labor cost.
- Less plastic waste: 5 tons of less plastic per million bags**
Eco cover-plus technology
In the Eco cover-plus technology, we used as a starting point the main competitive features s of the current Eco bags and through focused R&D efforts we are offering better results in:
- Product coverage
- Low or no stretch
- Higher tensile strength
- Excellent tear resistance
- Reduction in production cost
- Rigid packs and better pallet stability
All bags are available in 201 & 211 quality. Special sizes, hot melt as well as handles are possible on request. All qualities are heavy metals free.

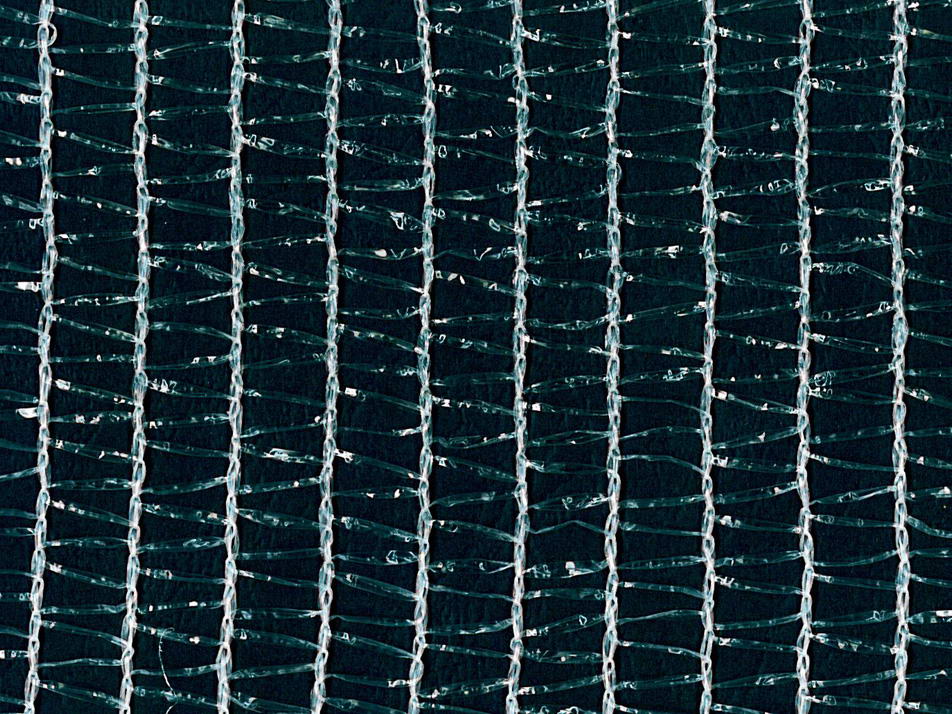

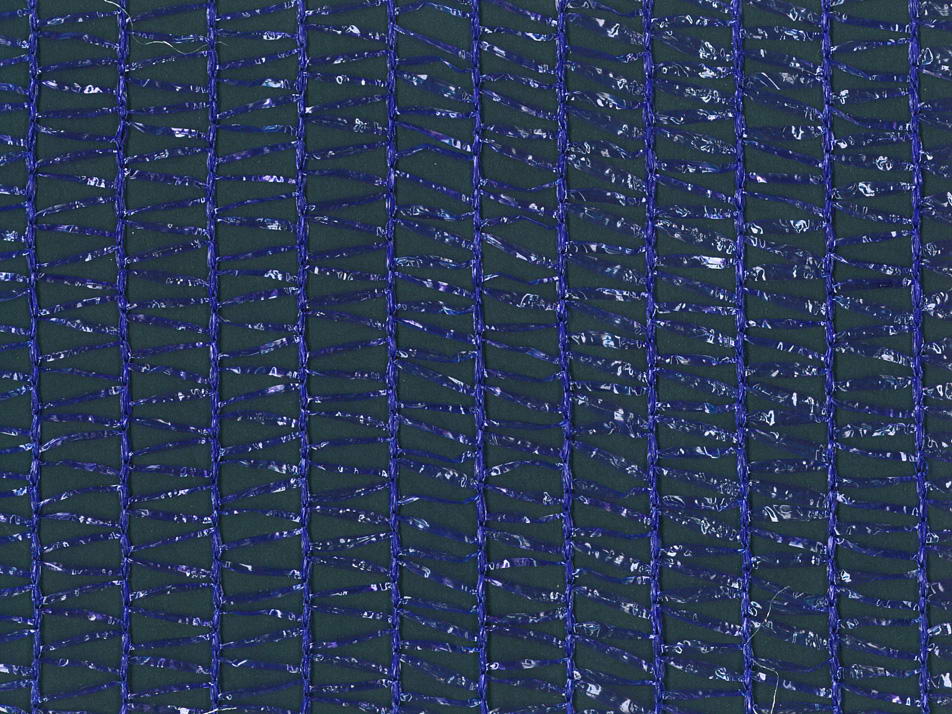

Mesh 201 or normal mesh is especially suitable for packing of potatoes and carrots. Mesh structure allows air ventilation, enhances the product inside, making it clearly visible. Yet it is very durable that makes it impossible tearing a bag without the use of a sharp tool.

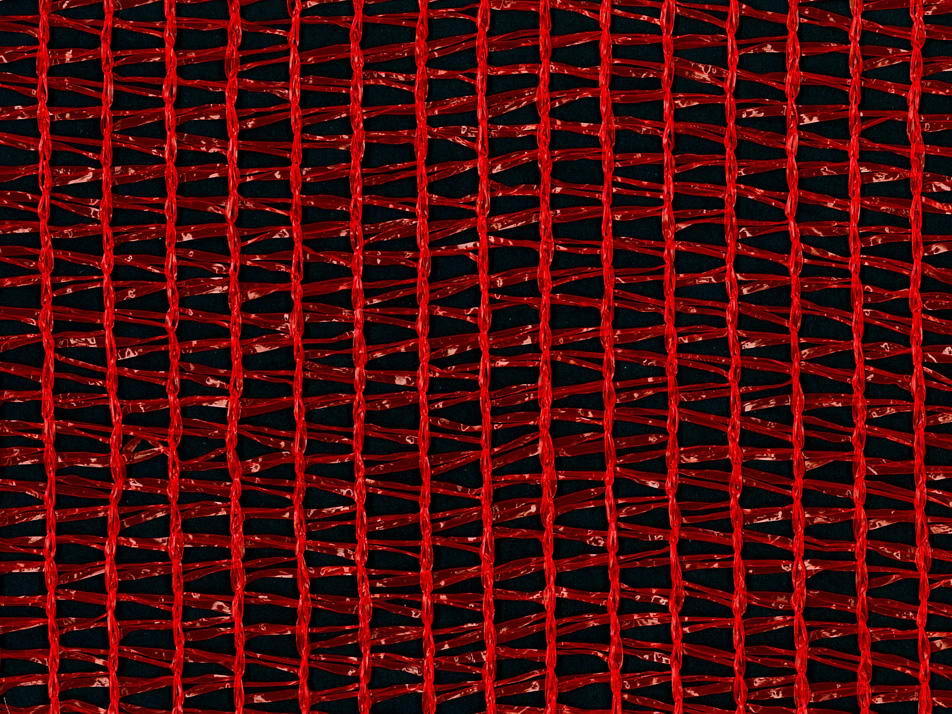

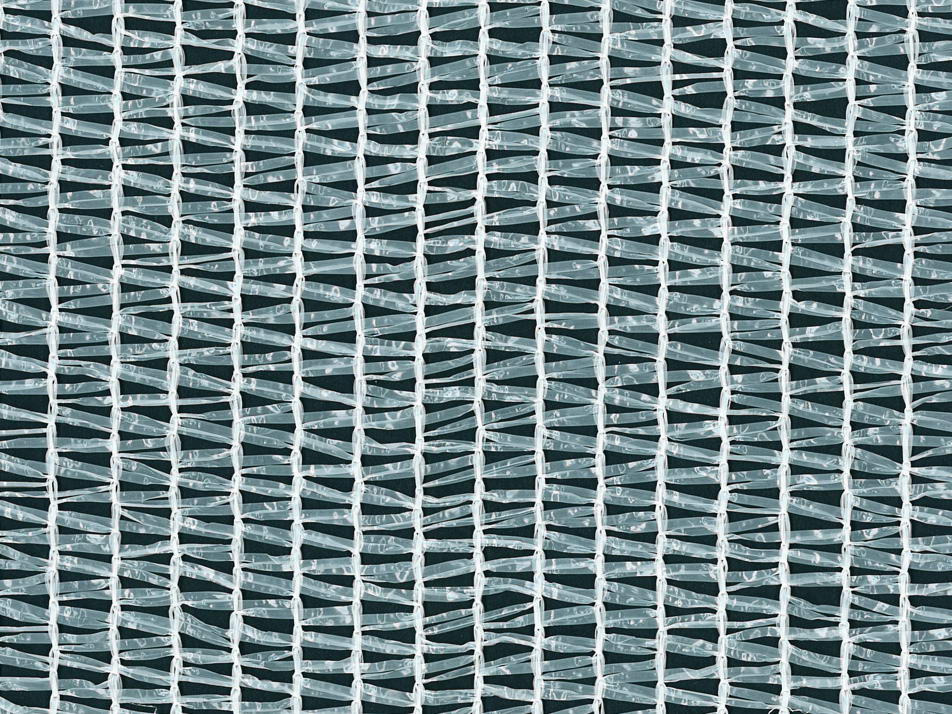

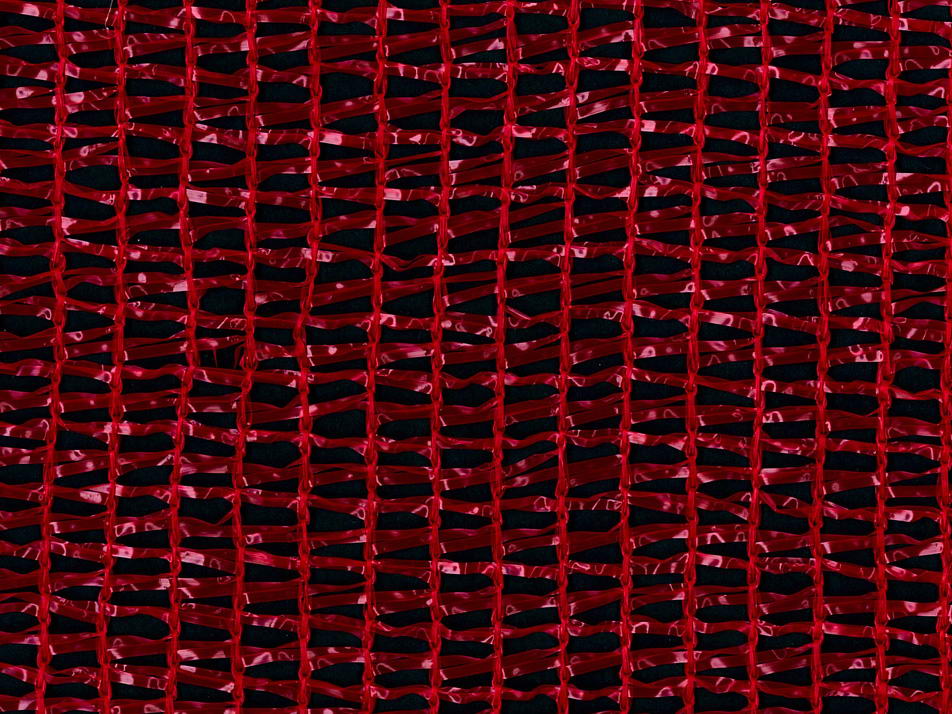

Mesh 211 or small mesh is especially suitable for packing carrots, onions, potatoes seed potatoes and seed onions and other products. Mesh structure still allows very good air ventilation, enhances the product in the best way by giving adequate coverage and brightness and it is even more durable. Small fragments are harder to accidentally fail out of the bag, keeping the storage and the shelf clean and tidy.
Technical Specification
| Capacity in kg | Dimensions in cm | Knitting types | Pieces/Rolls |
|---|---|---|---|
| 201 / 211 | |||
| 2.5 | 29 x 36 * | • | 5000 |
| 5 | 34 x 46 * | • | 4000 |
| 10 | 41 x 60 | • | 3000-3500 |
| 12.5 | 40 x 63 * | • | 3000 |
| 15 | 46 x 65 | • | 2500-3000 |
| 20 | 50 x 70 (48 x 76 for 211) | • | 2500 |
| 25 | 50 (or 52) x 80 or 54 x 76 | • | 2000-2500 |
Packaging
| Capacity in kg | Rolls per Truck | Rolls per 40 fcl | Rolls per 20 fcl |
|---|---|---|---|
| 2.5 | 528 | 480 | 200 |
| 5 | 440 | 400 | 160 |
| 10 | 352 | 320 | 120 |
| 12.5 | 352 | 240 | 120 |
| 15 | 352 | 240 | 120 |
| 20 | 352 | 240 | 120 |
| 25 | 352 | 240 | 120 |
Standard bags

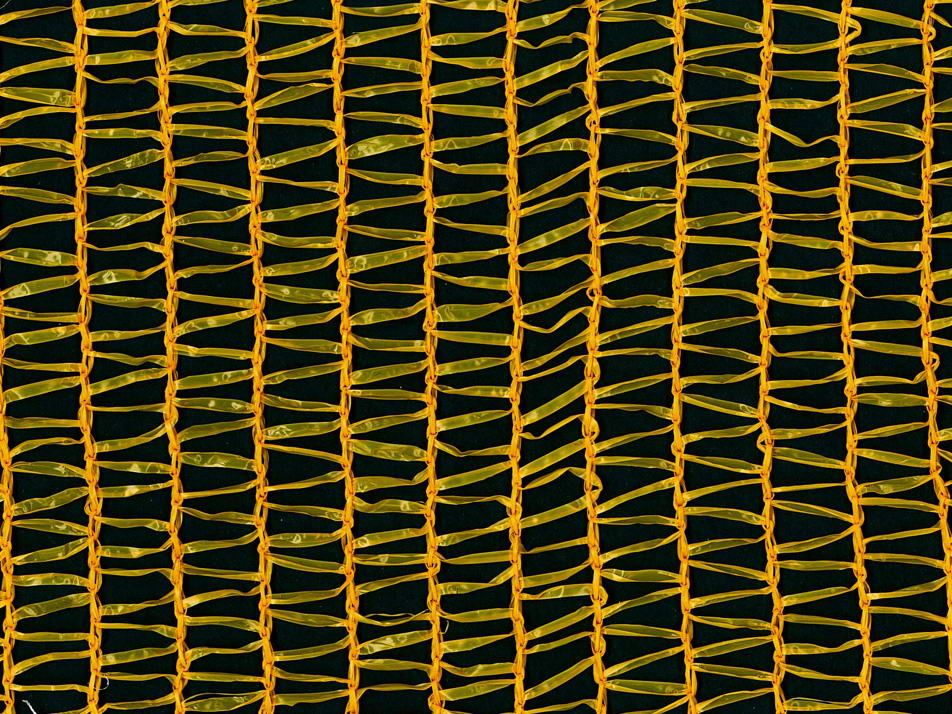

Standard Raschel bags in rolls are one of the most universal packing materials suitable for vegetables and fruits. All bags are available in 201 & 211 quality. Special sizes, hot melt as well as handles are possible on request. All qualities are heavy metals free. Mesh 201 or normal mesh is especially suitable for packing of potatoes and carrots. Mesh structure allows air ventilation, enhances the product inside, making it clearly visible. Yet it is very durable that makes it impossible tearing a bag without the use of a sharp tool.
Mesh 211 or small mesh is especially suitable for packing carrots, onions, potatoes seed potatoes and seed onions and other products. Mesh structure still allows very good air ventilation, enhances the product in the best way by giving adequate coverage and brightness and it is even more durable. Small fragments are harder to accidentally fail out of the bag, keeping the storage and the shelf clean and tidy.
Technical Specification
| Capacity in kg | Dimensions in cm | Knitting types | Pieces/Rolls |
|---|---|---|---|
| 201 / 211 | |||
| 2.5 | 29 x 36 * | • | 4000 |
| 5 | 34 x 46 * | • | 3000 |
| 10 | 41 x 60 | • | 2500-3000 |
| 12.5 | 40 x 65 * | • | 2500-3000 |
| 15 | 46 x 65 | • | 2500 |
| 20 | 50 x 70 (48 x 76 for 211) | • | 1500-2000 |
| 25 | 50 (or 52) x 80 or 54 x 76 | • | 1500-2000 |
Packaging
| Capacity in kg | Rolls per Truck | Rolls per 40 fcl | Rolls per 20 fcl |
|---|---|---|---|
| 2.5 | 528 | 480 | 200 |
| 5 | 440 | 400 | 160 |
| 10 | 352 | 320 | 120 |
| 12.5 | 352 | 240 | 120 |
| 15 | 352 | 240 | 120 |
| 20 | 352 | 240 | 120 |
| 25 | 352 | 240 | 120 |
